Antminer S23 Hydro (580 th/s)

The most efficient liquid cooled miner with powersupply included!

Options:

Antminer S23 Hydro

Order on request Send a request

Shipping Destination:

Delivery time: EU & Non-EU

ANTMINER S23 Hydro, SHA-256, super efficiency with a top hashrate! Enter a new era of liquid cooling!

Bitmain revealed Groundbreaking S23 Hydro at World Digital Mining Summit 2025

BITMAIN revealed its flagship Antminer S23 Hydro at the World Digital Mining Summit 2025. The summit, took place in Las Vegas from May 26st to 27st, carried the theme “Hydro. Efficiency. Pioneering The Next Mining Era.”

The S23 Hydro is the latest in Bitmain’s liquid series, achieving an efficiency of 9.5 J/TH. This marks a significant leap from previous models like the S21 Hydro at 16 J/TH .

BITMAIN ANTMINER S23 Hydro, SHA-256, superior performance with a top hashrate! The future is coming!

*Unlike most sellers we ship from the Netherlands (EU zone)
*Order without VAT (0%) with a EU company VAT number or by ordering from outside EU.
*The price of mining machines must be adjusted frequently according to many factors, including cryptocurrency/USD exchange rate, the network difficulty, expected difficulty increase, stock availabilty or changes in the algorithm. Refund requests based on these factors cannot be honored.
*Up to two years warranty instead of 180 days.
*Best price in the EU!

Antminer S23 Hydro specifications

Product Glance
Model                         S23 Hyd
Algorithm | Cryptocurrency                         SHA256 | BTC/BCH/BSV
Hashrate, TH/s                         580
Power on wall @25°C, Watt                         5510
Power efficiency on wall @25°C, J/TH                         9.5
Detailed Characteristics
Power Supply Phase 3
Power supply AC Input voltage, Volt(1-1) 380~415V AC
Power supply AC Input Frequency Range, Hz 50~60
Power supply AC Input current, Amp(1-2) 12
Hardware Configuration
Networking connection mode RJ45 Ethernet 10/100M
Miner Size (Length*Width*Height, w/o package),mm(2-1) 410*170*209
Miner Size (Length*Width*Height, with package),mm 570*316*430
Net weight, kg(2-2) 13.5
Gross weight, kg 14.8
Environment Requirements
Inlet water temperature, °C NEM(2-3)

HEM1(2-3)

HEM2(2-3)

35

45

50

Water flow, L/min 8.0~10.0
Water pressure bar <=3.5
Working fluid(2-4) Antifreeze/Deionized water/Pure water
Liquid PH 8.5~9.5
Diameter of water pipe connector, mm OD10
Storage temperature, °C -20~70
Operation humidity(non-condensing), RH 10~90%

NOTE:

The Power Cord LP-20 for Hydro PSU 1.5m 2.5mm2 300/500V is included!
Click here to download the manual for installation.

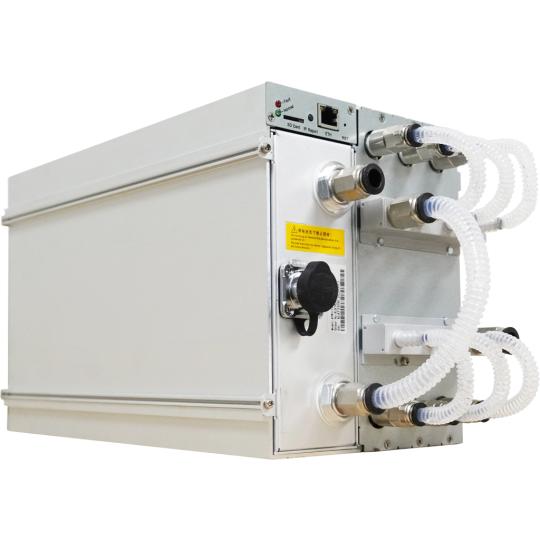

Antminer S23 Hydro

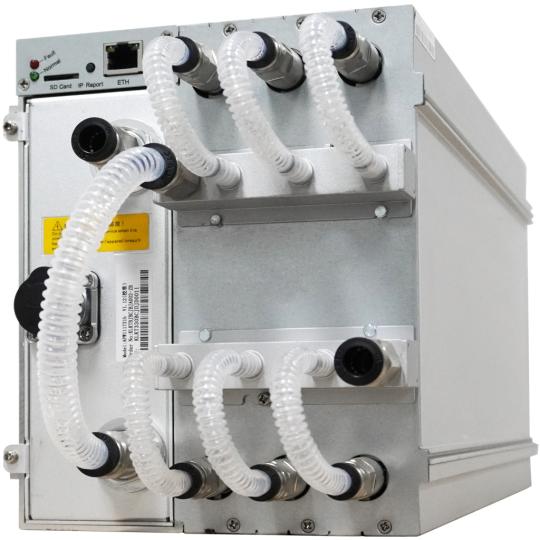

Antminer S23 Hydro front 2

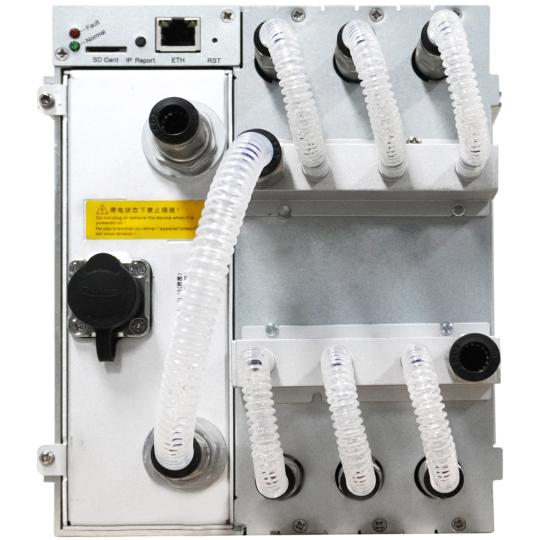

Antminer S23 Hydro front

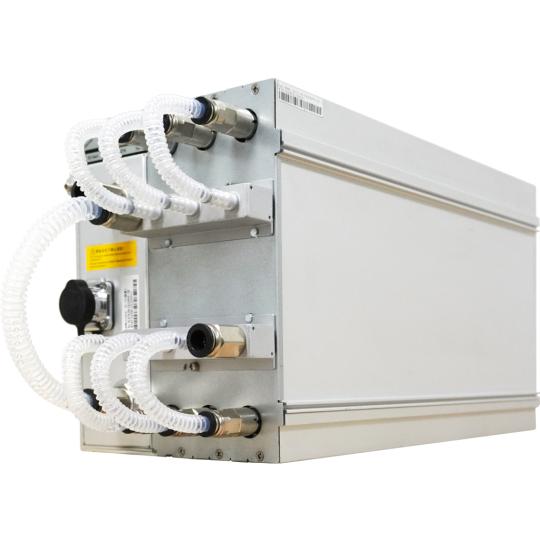

Antminer S23 Hydro side
