Hydro Cooling Suite for 36 Antminer S19/S21/S23 Hydro – Simple & Reliable
The H200-S is a 200kW hydro cooling kit for Bitcoin mining, supporting up to 36 Antminer S19, S21, and S23 Hydro miners. Ideal for water-cooled crypto mining with optional heat recovery. This set up comes with CDU and Dry cooler.
-
Features
-
200kW High-Efficiency Cooling
Delivers powerful and stable cooling for large-scale Bitcoin mining operations. -
Modular Design for Easy Scalability
Easily expand your cooling capacity as your mining farm grows. -
Optimized for Low-Temp Startup
Ensures reliable miner operation even in cold environments. -
Built-in Interfaces for Heat Reuse
Supports efficient heat recovery for secondary energy utilization.
Specifications
1. H200-S
| Size | 1550mm(W)*2200mm(H)*400mm(D) |
| System Power Load (MAX) | 226kW |
| Miner Capacity | 36 S21/S19 Hydro |
| Input Voltage | 3-Phase 380V-415V, 50/60Hz |
| PDU | PDC/PDU |
| Network | 1000M Network Switch*2 |
| Operation Temperature | -25 ~ 35℃ |
| Operating Humidity | 5%~95%RH |
| Water Manifold | Stainless Steel |
| Hose | PE/PTFE Hose + Quick Connects |
2. H200-CDU
| Size | 800mm(W)*2100mm(H)*1000mm(D) |
| Cooling Capacity | 200kW |
| Power | 3.5kW |
| Input Voltage | 3-Phase 380V-480V, 50/60Hz |
| Cooling Medium | Pure water/Soften water+Antifreeze +Corrosion Inhibitor |
| Inlet/Outlet | 10°C (Normal)
14°C (High Performance) |
| Rated Flow Rate | 20m³/h |
| Operating Temperature | -25℃~45℃ |
|
Operating Humidity
|
5%~95%RH |
| PLC System | Constant flow control with pressure regulation |
| Communication Method | Modbus-RTU,TCP/IP |
| Design Pressure | 0.3MPa |
3. H200-Dry Cooler
| Model | FHWDC200 |
| Module | Dry Cooler V Type |
| Cooling Capacity | 200kW |
| Wight(Empty Load) | 800KG |
| FANs | 3 |
| Connection | DN50 |
| Fluid | Coolant |
| Fluid flowrate | 20m³/h |
| Inlet/Outlet Temperature | 55℃/40℃ |
| Ambient temperature | 35℃ |
| Fin/Tube Materials | 304 Stainless steel，Al-mg/AI |
| Operating/Maximum Pressure | 0.3MPA/1.6MPA |
Foghashing H200-S + CDU + Dry cooler

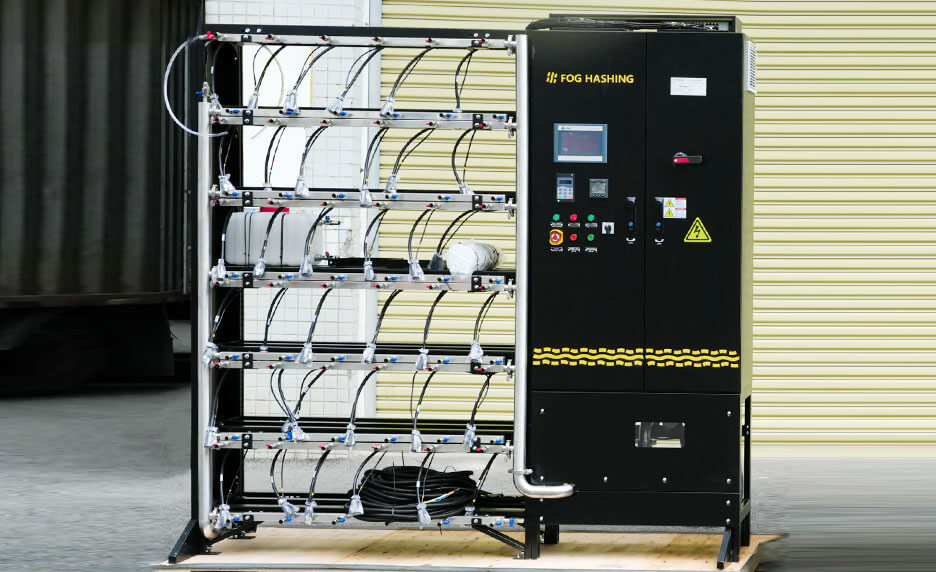

FogHashing-H200-S-2

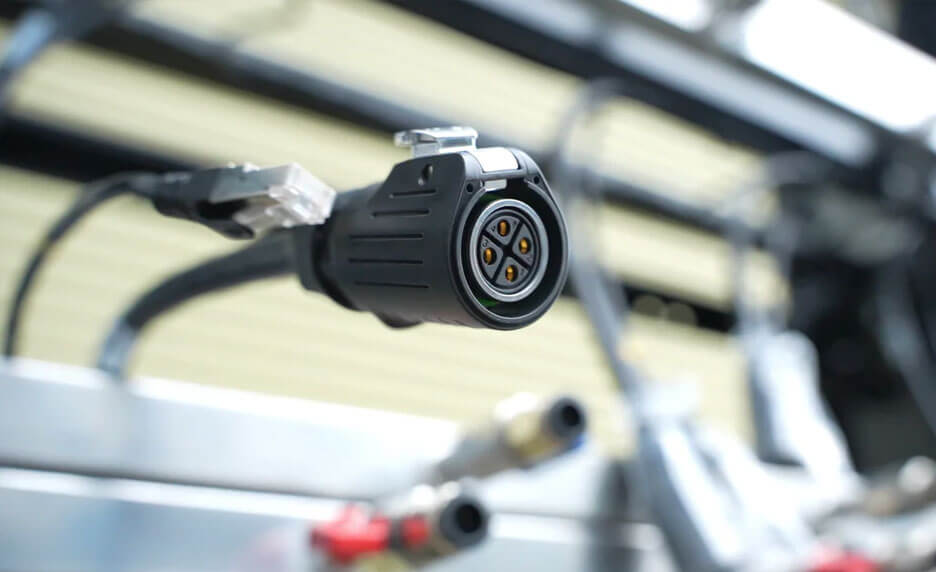

FogHashing-H200-S-3

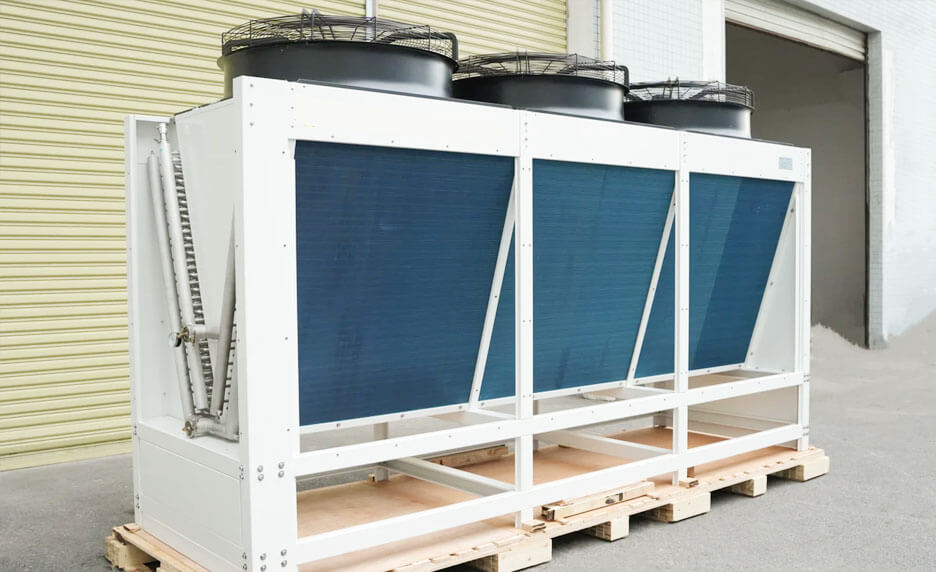

FogHashing-H200-S-4
Hydro-Cooling-Suite-H200-S
